    SELF-INSTALLED STAINLESS STEEL PUMPS


    Working Principle


Entry

 When the motion of the shaft-connected fan comes into contact with the tapering form of the flexible flange, it tilts in the opposite direction of rotation. Vacuum effect occurs in the environment where the wing is trying to come to the old form in the mouth with suction channel. Thus, the vacuum effect in the water pours the liquid to be transported into the pump.

Shift
 The fluid between the sash and the circular part of the body is translated towards the discharge line by the rotational movement.
Exit
When the wing touches the constricted part of the torso, it bends again. During this time, the liquid behind it pushes by applying pressure and allows it to be thrown out of the discharge line. At this point, the fluid is taken from the suction line and pumped from the discharge line.

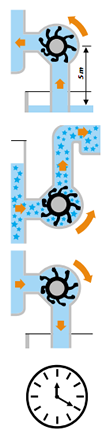

    General Features


  • All parts except fan and mechanical seal are made of stainless steel.



  • Depending on the viscosity, the pipe diameter and the speed, it can absorb itself up to 5m.



  • High-low viscosity fluids and fluids containing non-abrasive solid particles can be transferred at constant speed and without damaging the fluid.



  • The pump can be operated in two directions. However, continuous change of direction may cause wear and tear on the fan blades.



  • Because the flexible fan blades operate by rubbing against the shell, It should not be operated for more than 20 seconds

    Scope of Application




  • Food Industry:Milk, yoghurt, ayran, wine, beer, melted butter, mayonnaise, ketchup, Liquid, liquid sugar, liquid egg, yeast, vinegar, ice cream, Hot chocolate, fruit juice, syrup transfer.

  • Chemical Industry:
    Paint, detergent, acid and alkali, water-based glue, wax, Ink, emulsion transfer.



  • Cosmetic and Pharmaceutical Industry:
    Shampoo, liquid soap, cream, lotion transfer can be used.

    gptablo
    Material Properties


Body: AISI 316L, AISI 304

Shaft: AISI 316L

Flexible Fan: Natural Rubber (NR), Nitril (NBR), Slikon (VMQ)
Etilen Propilen (EPDM), Neopren (CR),

Mechanical seal: Inoks, Grafit, EPDM (NBR)

Other metal parts: AISI 316L, AISI 304





    Mounting Shapes




Each pumps series; Can be presented in different application types according to the desired number of revolutions and gusts.









· Food Industry:

Milk, yoghurt, ayran, wine, beer, melted butter, mayonnaise, ketchup, Liquid, liquid sugar, liquid egg, yeast, vinegar, ice cream, Hot chocolate, fruit juice, syrup transfer.
